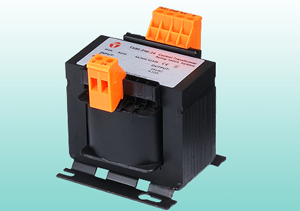

JBK5 Machine Tool Control Transformer
 |
Application
The Trugeng Electric JBK5 Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards combined with the full breadth of product offering, the JBK5 Series Transformers from Trugeng Electric are the ideal solution for your industrial control applications.
Specifications
Type Rated power (VA) Reated input voltage (V) Rated output voltage
Control Illumination Indication
JBK5-40 40 220±5% 110(127) 24(36) 6(12)
JBK5-63 63
JBK5-100 100
JBK5-160 160
JBK5-250 250
JBK5-400 400
JBK5-500 500
JBK5-630 630
JBK5-800 800
JBK5-1000 1000
JBK5-1600 1600 Distribution of capacity for different windings would be according to the users requirements
JBK5-2500 2500

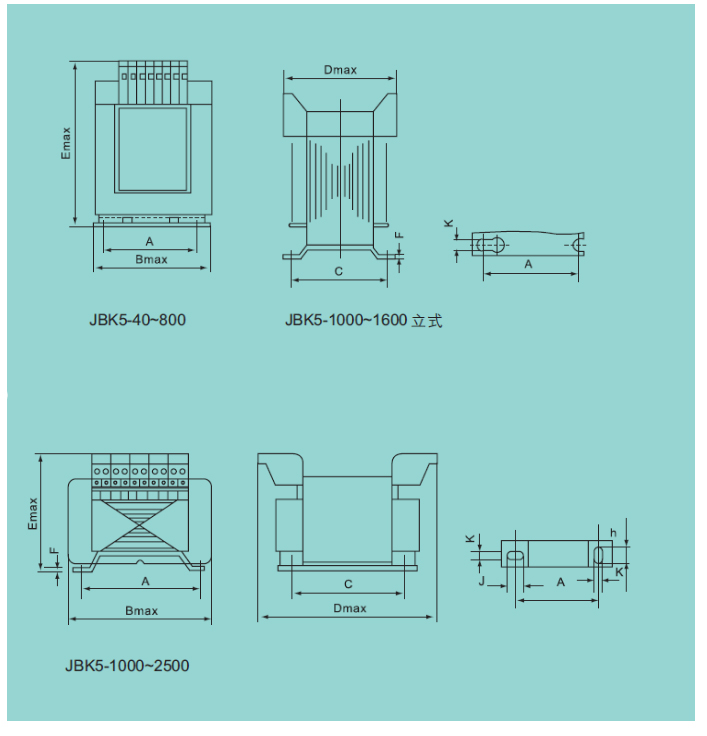

Overall dimension
| Type |
Rated power (VA) | Installing dimensions | Outline dimensions | Cavity | ||||
| A | C | B | D | E | F | K or K×J | ||
| JBK5-40 | 60 | 56±0.2 | 46±0.5 | 78 | 72 | 95 | 1.2 | 4.6×8 |
| JBK5-63 | 63 | 56±0.2 | 46±0.5 | 78 | 72 | 95 | 1.2 | 4.6×8 |
| JBK5-100 | 100 | 64±0.2 | 62±0.5 | 85 | 75 | 98 | 1.5 | 4.6×8 |
| JBK5-160 | 160 | 84±0.2 | 73.5±0.5 | 96 | 92 | 110 | 1.5 | 5.5×10 |
| JBK5-250 | 250 | 84±0.2 | 85±0.5 | 96 | 100 | 110 | 1.5 | 5.8×10 |
| JBK5-400 | 400 | 90±0.2 | 85±0.5 | 120 | 100 | 130 | 2 | 5.8×10 |
| JBK5-500 | 500 | 90±0.2 | 98 | 120 | 120 | 130 | 2 | 5.8×10 |
| JBK5-630 | 630 | 122±0.2 | 90±0.5 | 150 | 110 | 155 | 2 | 7×14 |
| JBK5-800 | 800 | 122±0.2 | 105±0.5 | 150 | 130 | 155 | 2 | 7×14 |
| JBK5-1000 | 1000 | 138±0.2 | 105±0.5 | 168 | 128 | 170 | 2 | 9×15 |
| JBK5-1600 | 1600 | 138±0.2 | 116±0.5 | 168 | 140 | 170 | 2 | 9×15 |
| JBK5-1000 | 1000 | 127.5±2 | 152±2 | 155 | 205 | 135 | 3 | 7×12 |
| JBK5-1600 | 1600 | 140±2 | 176±2 | 180 | 230 | 153 | 3 | 7×12 |
| JBK5-2500 | 2500 | 173±2 | 200±2 | 205 | 260 | 170 | 4 | 7×12 |
